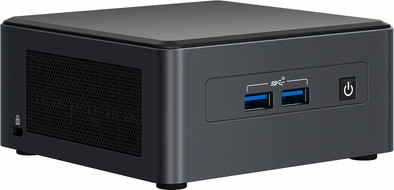

Intel NUC 11 Pro Kit i5 Tiger Canyon NUC11TNHI5
- 0 reviews
Never available again
View alternatives in the sidebar
Similar barebones
- Intel Core Ultra 7 processor
- Octa-Core (8)
Delivered tomorrow
- Intel Core Ultra 5 processor
- Octa-Core (8)
Delivered tomorrow
- Intel Core i7 processor
- Octa-Core (8)
Delivered tomorrow
Product information
Pros and cons
According to our barebone expert
- With a barebone, you can choose your own RAM, storage, and other components.
- You can easily mount the barebone behind your monitor thanks to the compact size, so you have a tidy desk.
- This barebone supports up to 64GB of DDR4 RAM, which you create a powerful memory with.
- If you want to get started with video editing, get a barebone with an Intel Core i7 processor.
Description
The Intel NUC 11 Pro Kit i5 Tiger Canyon NUC11TNHI5 is a barebone mini computer that's suitable for your daily work and photo editing. Think of writing reports in Microsoft Word or creating advertisements in Adobe Photoshop, for example. This computer has an 11th generation Intel Core i5 processor and offers space for 64GB RAM with a 3200MHz maximum clock speed. Is it hard to choose between a HDD and SSD? Don't worry, this barebone offers 3 connectors for your 2.5-inch or M.2 drive. That way, you have enough space for a HDD with a lot of storage and an SSD that loads your files and programs fast. Connect the mini PC with up to 4 screens at the same time via the HDMI, DisplayPort, or Thunderbolt 3 connectors. In addition, you have enough space for the dongles of a wireless mouse and keyboard via the various USB-A ports. This barebone also supports both wired and wireless internet. Don't want the barebone on your desk? Mount it behind the monitor with a VESA mount. In addition, this barebone supports Windows 10 x64, Windows 10 IoT Enterprise, RedHat EL Linux, and Ubuntu 20.04 LTS.
This is what you get
- Manual
- Power cord and adapter
Key specs
Product family | Tiger Canyon | |
Processor family | Core i5 | |
Barebone model | Tall kit | |
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 64 GB | |
Nubmber of M.2 connectors | 1 | |
Number of HDMI connectors | 2 |
Suitable accessories
Specifications
Product
Product number | 922623 | |
Manufacturer code | BNUC11TNHI50002 | |
Brand | Intel | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
General properties
Product family | Tiger Canyon |
Barebone model | Tall kit |
Connector included | |
Compatible with Windows version | Windows 10 |
Processor properties
Processor brand | Intel | |
Processor family | Core i5 | |
Processor code name | Tiger Lake U | |
Processor cores | Quad-Core (4) | |
Threads | 8 |
Processor performances
Clock speed | 2,4 GHz | |
Overclockable | ||
Turbo speed | 4,2 GHz | |
Cache memory | 8 MB | |
Number of performance cores | 8 | |
Integrated graphics | ||
Type of integrated graphics | Intel Iris Xe Graphics |
RAM properties
Memory type | DDR4 | |
Total number of RAM slots | 2 | |
Maximum internal memory | 64 GB | |
Maximum memory speed | 3200 MHz | |
Voltage RAM | 1.2V |
Video card properties
Integrated video card | ||
Chipset brand | Intel | |
GPU chipset number | Intel Iris Xe Graphics |
Storage properties
Nubmber of M.2 connectors | 1 | |
Supported M.2 SSD formats | 22x80mm | |
M.2 SSD connector type | B+M, M |
Network and audio properties
Bluetooth | ||
Bluetooth version | 5.1 | |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Ethernet port | ||
Number of Ethernet ports | 1 | |
Number of 1Gb/s Ethernet ports | 1 |
Video connections
HDMI connector | ||
Number of Female HDMI type A 2.0b connectors | 2 | |
DisplayPort connector | ||
Number of Female Standard DisplayPort 1.4a ports | 1 | |
Thunderbolt connector | ||
Number of Female Thunderbolt 3 (USB-C) ports | 2 |
USB ports on the front
USB-A ports front panel | |
Total amount USB-A ports front panel | 2 |
Amount of USB-A 3.2 Gen 1 (5 Gbps) ports front panel | 2 |
USB-C ports front panel | |
Total amount USB-C ports front panel | 1 |
Amount of USB-C 3.2 Gen 2 (10 Gbps) ports front panel | 1 |
USB ports on the back
USB-A ports back panel | |
Total number of USB-A ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 |
Number of USB-A 2.0 (480Mbps) ports back panel | 1 |
USB-C ports back panel | |
Total number of USB-C ports back panel | 2 |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 |
Audio properties
Digital optical connector |
Physical properties
Width | 11,7 cm |
Height | 5,4 cm |
Depth | 11,2 cm |
Color | Black |
Material | Metal, Plastic |
