Written by Marijn 12 March 2024 17:01

How do you connect a dishwasher?

A dishwasher is easy to connect. Before you get started, check if you have the right connections and if the inlet and drain hose are long enough. After, you screw on the inlet hose. Connect the drain hose to a trap or directly onto the drain pipe. Follow the 4 steps below to connect your dishwasher.

Summary
Check connectors
Check length
Connect the supply hose
Connect the drain hose

Connect dishwasher in 4 steps

You connect your dishwasher with the 4 steps below.

Step 1. Check the connections
Step 2. Check the length of the hoses
Step 3. Connect the supply hose
Step 4. Connect the drain hose

View all dishwashers

Step 1: check connectors

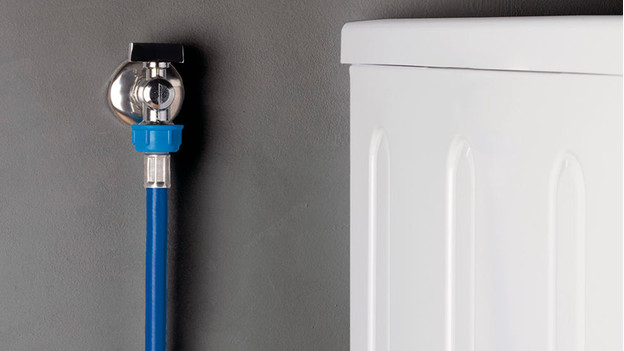

A washing machine faucet

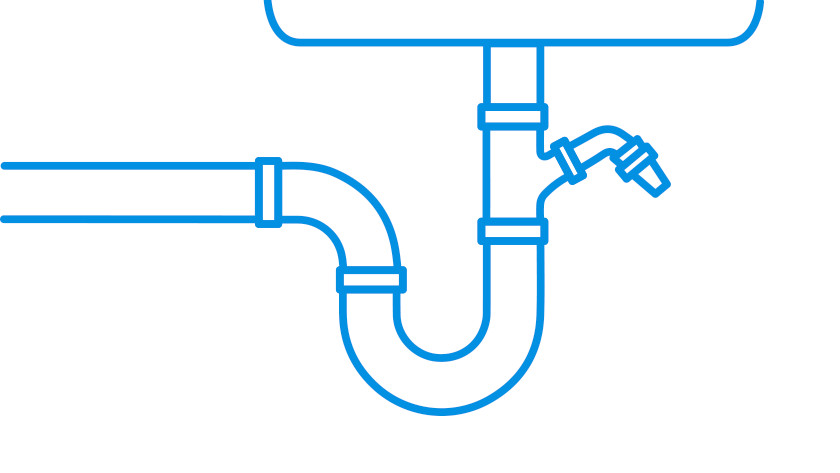

A trap with a dishwasher connector

To connect a dishwasher, you need the following things:

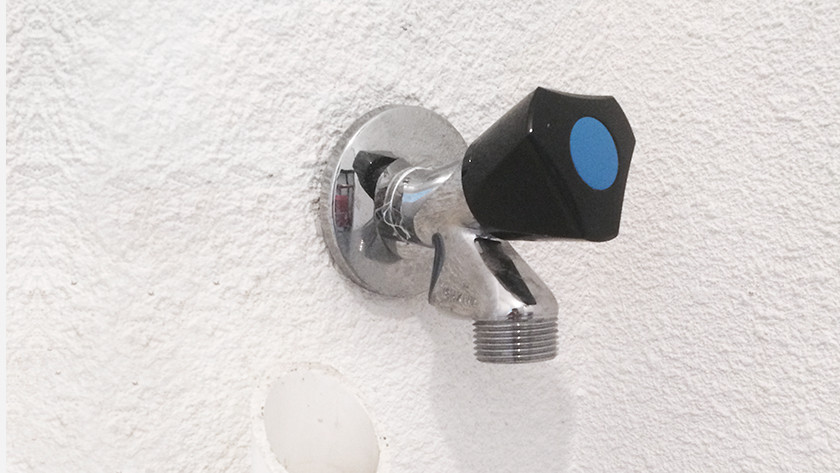

A washing machine faucet. This is a faucet with a 3/4 inch screw thread.
A connector for a dishwasher on the sink trap or a separate drain pipe.

Don't have these things? Call in a plumber to have them installed.

Step 2: check the length of the hoses

Check if the supply and drain hose of your dishwasher are long enough. The hoses need enough space and can't get kinked or crushed. Is the hose too short to connect to the faucet? Make sure you extend its length. You can find the maximum lengths of the hose in the dishwasher manual.

View our drain hoses here

Step 3: connect the supply hose

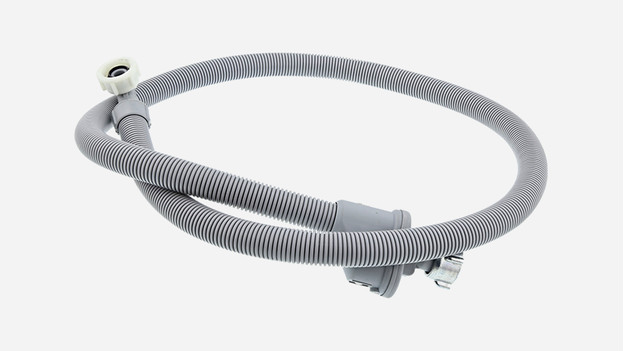

Connect the supply hose to the dishwasher

You connect the supply hose by screwing it into the washing machine faucet. Make sure you screw the hose on straight. Once it's connected, open the faucet and check if it doesn't leak.

Step 4: connect the drain hose

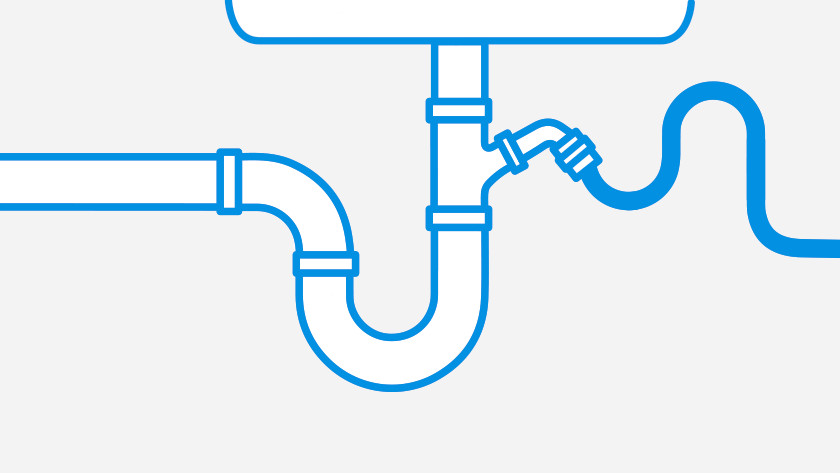

Connect to trap

Unscrew the connector from the trap and check if the rubber stop has been removed. If necessary, remove it and screw the connector back on.
Slide the hose clamp onto the end of the drain hose.
Slide the drain hose over the connector on the trap and screw the hose clamp on tightly.
Check if there's any leakage during the first use.

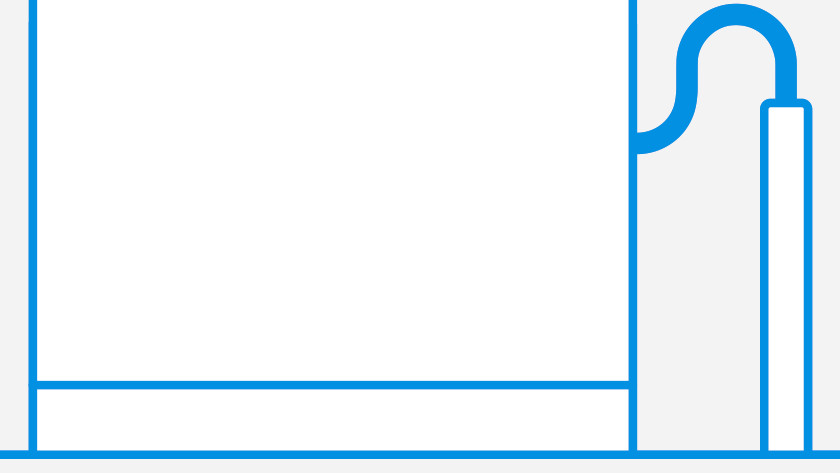

Connect to exhaust pipe

Insert the drain hose into the drain pipe. Make sure it doesn't go any deeper than 15cm. That way, the dishwasher can drain the water properly.
Many dishwasher include a hose conductor. This is a round piece of plastic. If you attach the drain hose to the conductor, it'll never slide too far into the pipe.
Attach the hose conductor to the wall behind the drain pipe with screws for extra security.
Always check for leakage during the first use.
