Second Chance MSI PRO B650M-P
Second Chance version:
Returned
·
Undamaged
Choose your Second Chance version
Condition
Version
Product information
Condition of this Second Chance product
- Returned product in opened original packaging
- Complete with undamaged accessories/parts
Pros and cons
According to our motherboard expert
- Thanks to the AM5 socket, the motherboard supports the 5th generation Ryzen processors from AMD.
- With the 4 DIMM slots with DDR5 RAM up to 7,200 MHz, you can easily play large games.
- The motherboard has room for 2 M.2 SSDs, so your games and other larger programs load faster.
- The motherboard doesn't have WiFi, so you can't wirelessly connect your computer to the internet.
Description

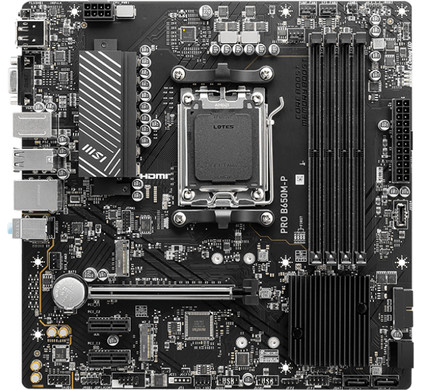

Upgrade your gaming PC with the MSI PRO B650M-P motherboard. This micro ATX motherboard has an AM5 socket and AMD B650 chipset, for using 5th generation AMD processors. Inside the motherboard are 4 memory slots with a total of 256GB DDR5 RAM. This allows you to easily play large games and make your PC faster. Want fast storage space in addition to large RAM? The 2 M.2 slots make it easy to place multiple SSDs on the motherboard. The B650M-P also has 1 PCIe x16 slot. For example, you can place a powerful video card here so your games look even better. You protect the SSDs in your motherboard with the heatsink that removes the heat. As a result, you can game longer without your CPU overheating. The motherboard has 8 USB-A ports on the back. That's useful to connect your gaming accessories to, for example. The motherboard has a DisplayPort version 1.4 and 1 version 2.1 HDMI port, so you can easily connect a monitor.
This is what you get
- Manual(9.53 MB)
- M.2 clamp (2x)
- SATA cable
- I/O backplate
Key specs
Socket (CPU) | AMD AM5 | |
Motherboard chipset | AMD B650 | |
Form factor (motherboards) | MicroATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 1 | |
Built-in WiFi | ||
Support for overclocking |
Reviews
Rating
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Specifications
Product
Product number | 954562 | |
Manufacturer code | 7E27-001R | |
Brand | MSI | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
General properties
Compatible with Windows version | Windows 10, Windows 11 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower, Mini Tower | |
Form factor (motherboards) | MicroATX |
Chipset properties
Chipset brand | AMD | |
Motherboard chipset | AMD B650 | |
Socket (CPU) | AMD AM5 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
RAM properties
Total number of RAM slots | 4 | |
Memory type | DDR5 | |
Memory speed | 7200 MHz | |
Maximum memory speed | 7200 Hz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCIe connectors
PCI Express x1 slots | 2 | |
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 1 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Storage properties
Supported M.2 SSD formats | 22x80mm | |
Nubmber of M.2 connectors | 2 | |
Number of cooled M.2 SSD slots | 0 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
WiFi and Bluetooth properties
Built-in WiFi | ||
Bluetooth |
Video connections
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector | |
Number of female standard VGA ports | 1 |
USB connectors
USB-C ports back panel | |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Audio and Ethernet connectors
Headphone jack | ||
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC897 |
Power connectors
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 3 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
Other connectors
USB-A ports on the motherboard | 0 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting
RGB lighting | ||
Zones separately lit |
